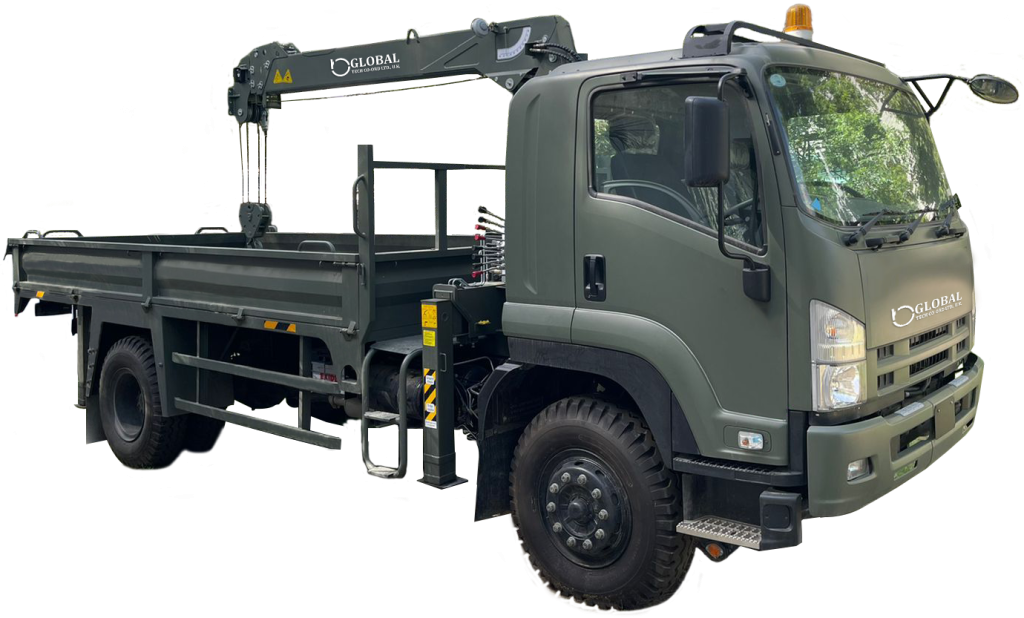

TRUCK MOUNTED CRANE
Specification
Performance
- Max Lifting Capacity
- Max Lifting Height
- Max Working Radius
- Max Work Height
- Crane Capacity
- Lifting Capacity
- : 8.0 (Ton/M)
- : 9.5 (M)
- : 7.5 (M)
- : 9.5 (M)
- : 3.0 (Ton)
- : 3,200 KG/2.5M
Boom
- Shape
- Section
- Angel
- : Hexogonal
- : 03
- : 0° – 80°
Winch
- Type
- Wire Rope
- Safety Device
- : Spur Gear Reduction & Mechanical Brake
- : Dia 8 X 70
- : Hook Safety Latch
Boom
- Slewing Type
- Slewing Angle
- Slewing Speed
- : Worn Gear Reduction
- : 3602
- : 2 RPM
Hydraulic Fluids
- Rated Flow
- Rated Pressure
- Oil Tank
- : 45L/MIN @ 1000RP
- : 210 KGF
- : 50L
Outrigger
- Outrigger No.
- Outrigger Type
- Max. Span
- : 2 (Main:02)
- : Manual, Vertical By Hydraulic
- : 4,127 M
Safety Devices
Option
- Pressure Relief Valve
- Counter Balance Valve
- Pilot-operated Check Valve
- Boom Angle Indicator
- Hook Safety Latch
- Mechnical Winch Brake
- Emergency Stop Switch
- Warning Alarm
- Over Winding Alarm
- Automatic Moment Limiter
- Steel Bucket
- Temperature Sensor
- Oil Cooler
- Rear Outrigger
- Over Winding Prevention
- Over Loadind Prevention
- Wire – Seperation Prevention
