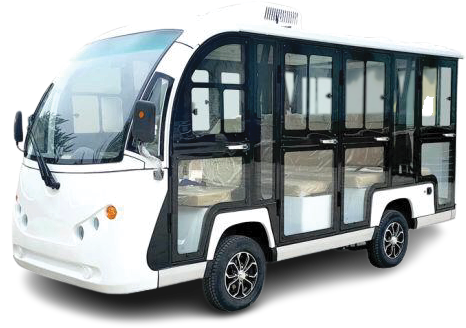

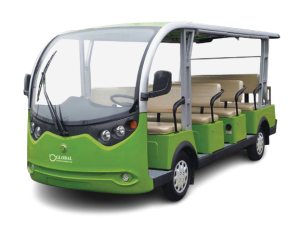

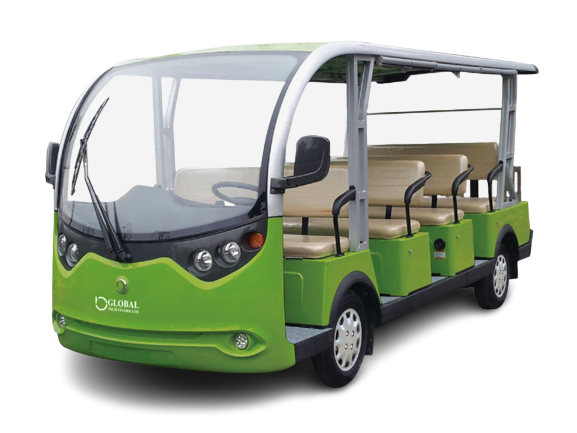

Electric Cart

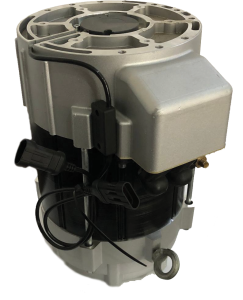

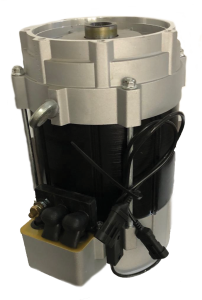

Motor:

GTCL Heavy Duty 72V / 7.5kw AC System

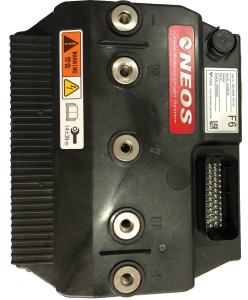

AC Motor Controller:

72V Toyota Communication CONTROLLER 80L 440

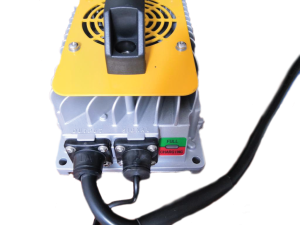

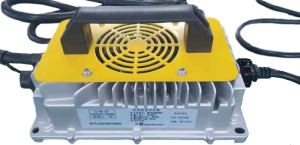

Charger:

Off Board Charger 72V DC 25A

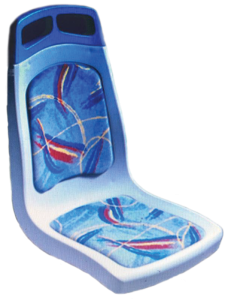

Passenger Capacity:

11 (All Seats Front Face)

Range (Loaded) (km):

110km

Maximum Speed:

30km/h

Min. Turning Radius (m):

5.5m

Climbing Ability:

20%

Braking Dist:

5m

Max Loading Weight (kgs):

1200kgs

Charging Time (hour):

8 hours

Overall Dimensions (mm):

(L 4590 x W 1480 x H 2000)

Min. Ground Clearance (mm):

120mm

Wheelbase (mm):

2670mm

Front Wheel Tread (mm):

1280mm

Rear Wheel Tread (mm):

1320mm
