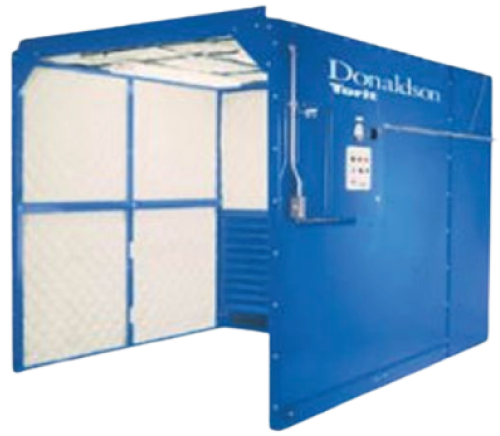

Environmental Control Booth Dust Collector
LpAeq: ≤ 75 dB (A-weighted equivalent continuous sound pressure level)
∆Li: ≤ 10 dB (impulsive noise content)
Measurement according to DIN 45635/1 at 1m distance, with 6 bar compressed
air pressure,
pulse interval of 15s, semi-free field conditions and usual tolerance ±2 dB.
Booth Pack Specifications
Booth Pack
Width (A) of booth
Approx. net weight (booth only)
ECB-2
2286 mm
300 kg
ECB-3
3429 mm
450 kg
ECB-4
4572 mm
600 kg
Compressed Air Requirements
- Max. 7 bar
- Pressure range 6-7 bar
- Clean air (max. particle size 50 µm)
- Free of condensate at working temperature
- Max. oil content:3 mg/m³
-
Approx. compressed air usage ± 50 Nlitres per pulse
(±18 Nm³/h for 10 s pulse interval at 7 bar) - *The indicated value is the consumption per valve
Options
- Full range of filter cartridges
- Pulse noise attenuation down to LpAeq ≤ 70 dB
- Compressed air – oil/water separator and accessories
- Earthing connection
- Joining pack for connecting two modules
- Downdraft bench
- ATEX certified unit on request
Fan Selection
These curves indicate static pressure available at fan inlet for a given application, when fitted into a collector . To select the most suitable fan for a given application:
- 1 Determine the air volume, in m3 /h, needed to entrain the dust.
- 2 Estimate pressure drop through connected system − i.e. between point of entrainment and collector inlet.
- 3 Assess pressure drop over dust collector, prior to replacing filter cartridges, usually 100 daPa.
- 4 The sum of 2 and 3 = static pressure at inlet.
- 5 Consult graph for fan performance available.
Electrical Specifications
Full automatic cleaning mechanism:
Torit Control Board or
IPC / IPC (∆Ρ) Controller
Pulse time:
100 ms
Interval time:
10 s
Voltage input:
400V AC; 3 ph; 50 Hz;
Control box protection class:
IP65
Solenoid voltage:
24V DC
